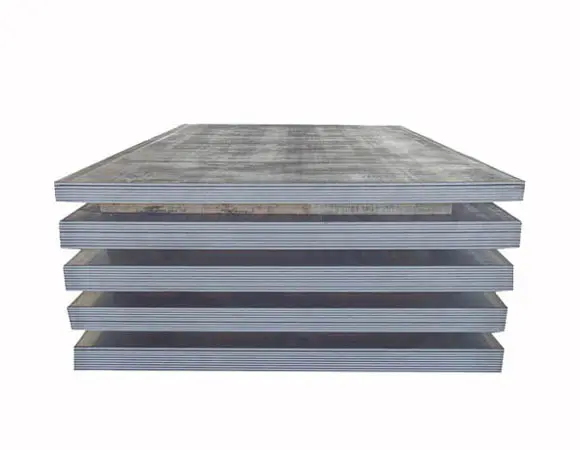

High strength EH32 marine grade steel plates certified by classification societies

ASTM A131 EH32 steel Description

EH32 structural steel for high-strength hulls is ship plates certified by classification societies, E is the grade, H refers to high-strength building materials, and 32 is the maximum compressive strength. EH32 marine steel plate has good low temperature toughness. It can be used for welded structural parts of ships, boilers, pressure vessels, oil storage tanks, bridges, power station equipment, lifting and transportation machinery and other high loads. EH32│EH32-Z35 Similar materials include: EH32-Z15, EH32-Z25, DH32, DH32-Z15, DH32-Z25, DH32-Z35, etc., and the additional classification society certification is usually expressed in this way, such as CCS certification: CCS/EH32, CCSEH32-Z35 and so on.

ASTM A131 EH32 marine steel plate is a kind of high-strength structural steel plate, which has good atmospheric corrosion resistance. EH32 steel plate can be delivered in the heat treatment state of hot rolling or normalizing rolling. High-strength EH32 marine steel plates are mainly used to make the hulls of various ocean-going ships and inland water ships, offshore oil production platforms, platform pipe joints and other structural parts, and usually require classification society certificates. The most popular classification societies in the world are ABS (American Bureau of Shipping), BV (Bureau Veritas), GL (Germanischer Lloyd), RS/RMRS (Russian Maritime Register of Shipping), NK ( Japan Maritime Association), DNV (Germanischer Lloyd) Norske Veritas), KR (Korean Register of Shipping), RINA (Italian Register of Shipping), CCS (China Classification Society), LR (Lloyds Register), etc.

ASTM A131 EH32 steel Datasheet

Thickness: 3mm-150mm
Width: 1220 - 4220mm
Length: 5000-18000mm
Standard: ASTM A131
Classification Societies: ABS, LR, BV, DNV GL, RINA, NK, CCS, KR, RMRS
Surface Treatment: Clean, blasting and painting according to customer requirement
Export packing: Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as request
Capacity: 250,000 tons/year

ASTM A131 EH32 steel Chemical composition

(heat analysis, % max unless otherwise specified)

Notes: 1) The contents of any other element intentionally added is to be determined and reported.

1. If the content of soluble aluminum is not less than 0.015 %, the minimum required silicon content does not apply.
2. Columbium and niobium are considered interchangeable names for the same element and both names are acceptable for use in A01 standards.
3. The indicated amount of aluminum, columbium (niobium), and vanadium applies if any such element is used singly.
4. Ca element need not be reported on the mill sheet unless intentionally added.

ASTM A131 EH32 steel Mechanical Properties

High strength EH32 shipbuilding steel plates are supplied with EN10204 3.2 MTC with stamp by American Bureau of Shipping. The main application of EH32 marine grade steel plates are high stress areas of ships, offshore and marine constructions.

Equivalent Grade of ASTM A131 EH32 steel
