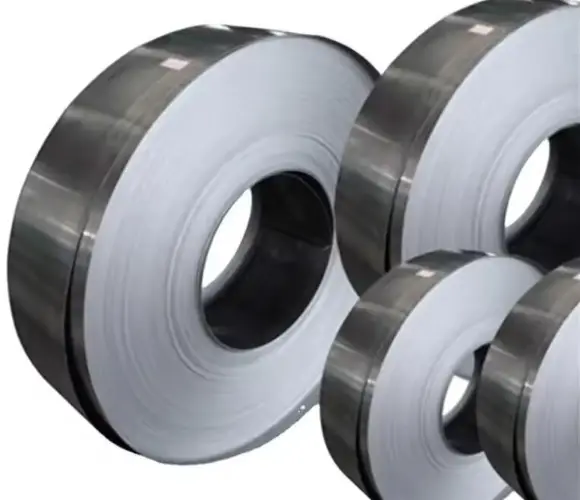

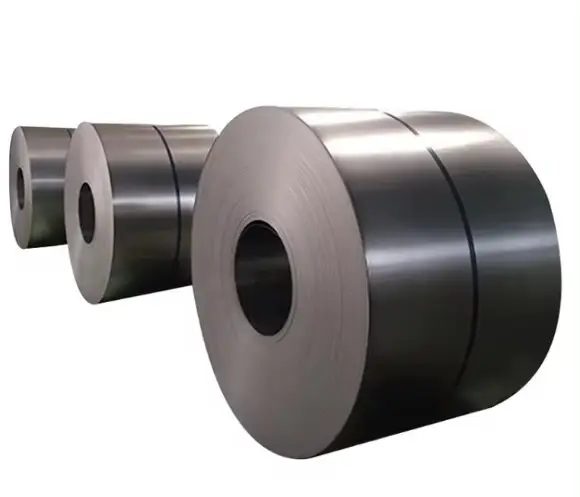

50W700 CRNGO Silicon Steel 50W700 Cold Rolled Non-Grain-Oriented Steel

Description: 50W700 silicon steel is an electrical steel sheet commonly used in power electronic equipment. It has good electrical conductivity and magnetic properties, making it play an important role in electrical equipment such as motors, transformers, and generato...

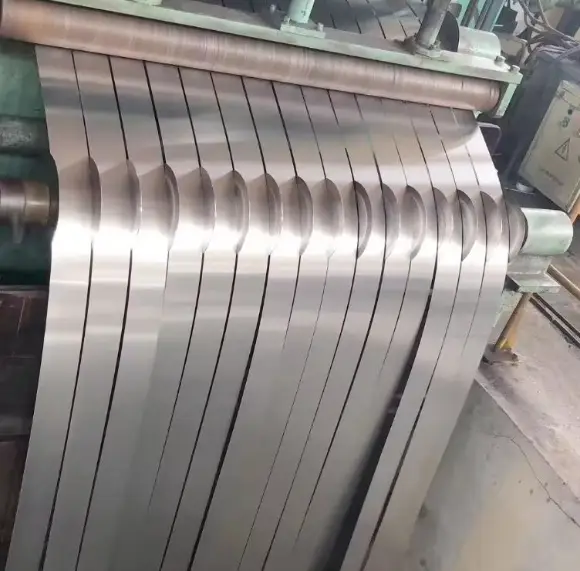

Processing Service: Cutting, Welding, Drilling, Rolling, Bending, Forming, Grinding, Stamping and so on machining

Available Size: Thickness: 0.2-20mm, Width: 900-4700mm, Length: 5000-18000mm

E-mail: [email protected]

Whatsapp: +86-15690878691

Chat Online Leave a Message

50W700 Silicon Steel Electrical Steel Description

50W700 silicon steel is an electrical steel sheet commonly used in power electronic equipment. It has good electrical conductivity and magnetic properties, making it play an important role in electrical equipment such as motors, transformers, and generators. In addition, 50W700 silicon steel is usually processed by cold rolling process and has excellent mechanical properties and processing properties.

The silicon element in 50W700 CRNGO silicon steel can significantly increase the resistivity and magnetic permeability of the steel, thereby enhancing its performance in electromagnetic fields. The "50" and "700" in 50W700 silicon steel usually represent its specific magnetic properties or thickness and other parameters. These parameters determine the applicability and performance of silicon steel in different application scenarios.

50W700 Cold Rolled Non-Grain-Oriented Steel Sheet may also be domestic or imported, non-oriented silicon steel sheet, which means that it can exhibit good magnetic properties evenly in multiple directions. This characteristic makes it work well in a variety of electrical equipment.

50W700 Silicon Steel Electrical Steel Datasheet

Type	50W700 Non-oriented Silicon Steel
Standard	GB
Technique	Cold Rolled
Thickness	0.49mm - 0.5mm
Surface Treatment	Coated
Shape	Steel Coil/Strip/Plate
Tolerance	±1%
Processing Service	Bending, Welding, Decoiling, Punching
Certificate	ISO9001
Package	Standard Seaworth Packing
Port	Tianjin\Qingdao\Shanghai
Sample	Avaliable

50W700 Silicon Steel Electrical Steel Chemical composition

50W700 Silicon Steel Electrical Steel Mechanical Properties

Mechanical Property
Grade	Yeild Strength (N/mm2)	Ultra-TensionStrength(N/mm2)	Ductility (%)	Hardness (HV1
35W230	430	560	20.0	225
35W250	415	550	20.5	220
35W270	400	515	20.5	215
35W300	360	480	21.5	195
35W360	350	480	23.5	190
35W440	275	420	27.5	165
35W550	265	415	33.5	160
50W250	430	560	19.0	230
50W270	410	550	21.5	225
50W290	395	545	22.5	220
50W310	385	510	24.5	210
50W350	350	475	26.5	190
50W400	320	460	36.0	170
50W470	295	425	35.0	160
50W600	280	410	37.0	140
50W800	285	405	38.5	135
50W1300(D)	250	360	40.0	115

Grade	Nominal thickness mm	Maximum nominal value of total specific loss P1.5/50 W/kg	Maximum specific total loss P1.5/50 W/kg	Minimum magnetic polarization strength J5000a T
35W230	0.35	2.30	2.10	1.62
35W250		2.50	2.28	1.64
35W270		2.70	2.45	1.64
35W300		3.00	2.65	1.64
35W360		3.60	3.20	1.65
35W440		4.40	3.40	1.67
50W250	0.50	2.50	2.30	1.64
50W270		2.70	2.48	1.64
50W290		2.90	2.65	1.64
50W310		3.10	2.85	1.64
50W350		3.50	3.00	1.65
50W400		4.00	3.20	1.65
50W470		4.70	3.30	1.70
50W600		6.00	4.20	1.68
50W700		7.00	4.70	1.70
50W800		8.00	5.50	1.71
50W1000		10.00	6.00	1.74
50W1300		13.00	7.00	1.74
