50W470 CRNGO Cold Rolled Silicon Steel 50W470 Non-Oriented Electrical silicon Steel Coil Strip

Description: 50W470 Electrical steel is a silicon steel widely used in the manufacture of energy-saving transformers and motors. 50W470 CRNGO Steel has excellent magnetic properties and is ideally suited for applications where low core losses and high permeability are...

Processing Service: Cutting, Welding, Drilling, Rolling, Bending, Forming, Grinding, Stamping and so on machining

Available Size: Thickness: 0.2-20mm, Width: 900-4700mm, Length: 5000-18000mm

E-mail: [email protected]

Whatsapp: +86-15690878691

Chat Online Leave a Message

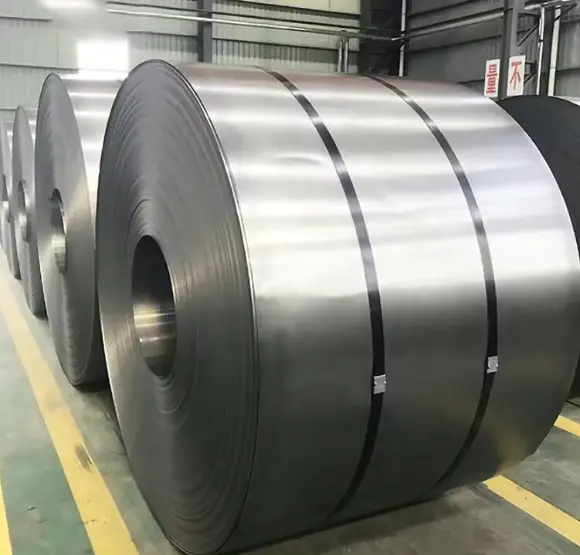

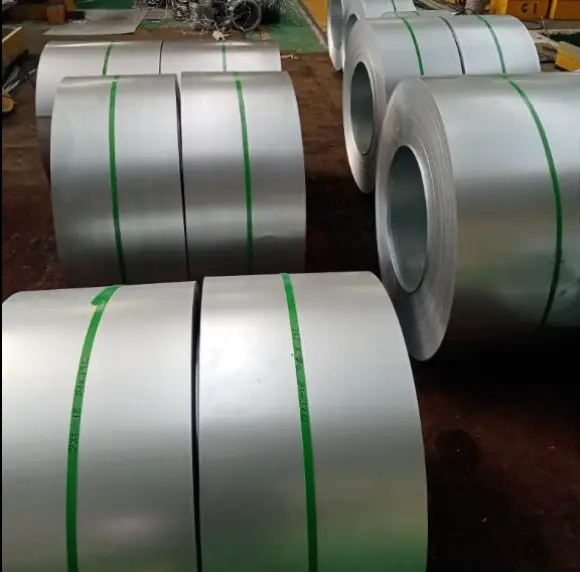

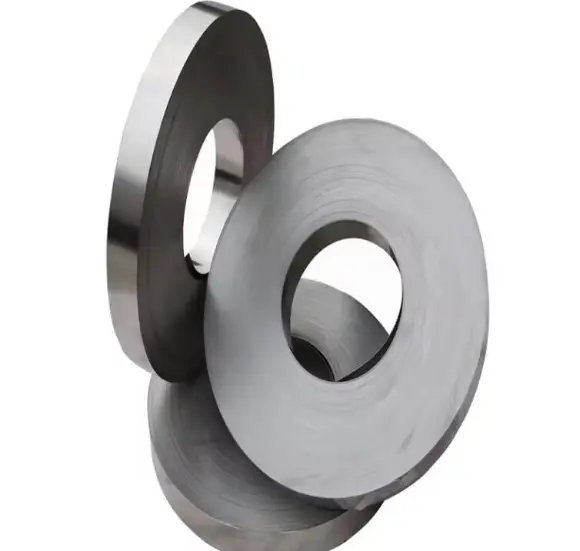

50W470 CRNGO Cold Rolled Silicon Steel Coil Strip Description

50W470 Electrical steel is a silicon steel widely used in the manufacture of energy-saving transformers and motors. 50W470: Indicates that the Si content in silicon steel is 5%, and W indicates no orientation. The number 470 after the grade indicates that the iron loss of the binder is 4.7W/kg. 50W470 CRNGO Steel has excellent magnetic properties and is ideally suited for applications where low core losses and high permeability are critical. Electrical steel 50W470 exhibits excellent magnetic induction strength under both static and dynamic conditions. Its unique composition enables efficient conversion between electrical and mechanical energy, thereby reducing power loss and increasing efficiency and reliability.

50W470 CRNGO Cold Rolled Silicon Steel has excellent thermal stability, ensuring optimal performance even at high temperatures. This feature makes it ideal for harsh environments where thermal dissipation is a concern. In addition to excellent magnetic properties and thermal stability, 50W470 electrical steel also has excellent formability and surface quality. These properties allow manufacturers to precisely shape the material while maintaining tight tolerances throughout the production process.

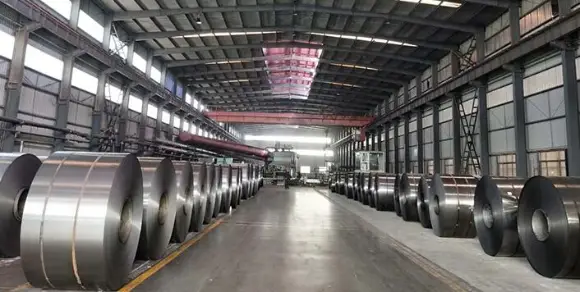

The production of 50W470 silicon steel sheets is known as a handicraft among steel products due to its complex process, narrow process window and difficulty in production, especially oriented silicon steel sheets. 50W470 Non-Oriented Electrical silicon Steel is mainly used to make iron cores, electromagnetic mechanisms, relay electronic devices and measuring instruments of various transformers, motors and generators.

50W470 CRNGO Cold Rolled Silicon Steel Coil Strip Datasheet

Type	50W470 Non-Oriented Electrical silicon Steel Coil Strip
Technique	Cold Rolled
Thickness	0.1mm - 0.5mm
Surface Treatment	Coated
Shape	Steel Coil/Strip/Plate
Tolerance	±1%
Processing Service	Bending, Welding, Decoiling, Punching
Certificate	ISO9001
Package	Standard Seaworth Packing
Port	Tianjin\Qingdao\Shanghai
Sample	Avaliable

50W470 CRNGO Cold Rolled Silicon Steel Coil Strip Chemical composition

	C	Si	Mn	P	S	Als
50W470	0.005%-0.008%	5.0%	0.1-0.3	Max 0.003	Max 0.006	0.25-0.5

50W470 CRNGO Cold Rolled Silicon Steel Coil Strip Mechanical Properties

Mechanical Property
Grade	Yeild Strength (N/mm2)	Ultra-TensionStrength(N/mm2)	Ductility (%)	Hardness (HV1
50W250	430	560	19.0	230
50W270	410	550	21.5	225
50W290	395	545	22.5	220
50W310	385	510	24.5	210
50W350	350	475	26.5	190
50W400	320	460	36.0	170
50W470	295	425	35.0	160
50W600	280	410	37.0	140
50W800	285	405	38.5	135
50W1300(D)	250	360	40.0	115

Grade	Nominal thickness mm	Maximum nominal value of total specific loss P1.5/50 W/kg	Maximum specific total loss P1.5/50 W/kg	Minimum magnetic polarization strength J5000a T
50W250	0.50	2.50	2.30	1.64
50W270		2.70	2.48	1.64
50W290		2.90	2.65	1.64
50W310		3.10	2.85	1.64
50W350		3.50	3.00	1.65
50W400		4.00	3.20	1.65
50W470		4.70	3.30	1.70
50W600		6.00	4.20	1.68
50W700		7.00	4.70	1.70
50W800		8.00	5.50	1.71
50W1000		10.00	6.00	1.74
50W1300		13.00	7.00	1.74
