XAR450 Abrasion Resistant plate XAR450 Wear-Resistant plate

XAR450 Abrasion Resistant Plate Description

XAR450 Abrasion Resistant plate is a special structural steel with high wear resistance. The average hardness of XAR450 wear-resistant special structural steel is 450HB, which has high hardness and good toughness. The addition of molybdenum, nickel, and boron alloys ensures uniform texture throughout the thickness direction. The thickness range is 3mm-160mm. All materials are heat-treated materials. The cargo state is quenched or quenched and tempered. Structures built with this steel are stronger, lighter and able to withstand impact loads. XAR450 wear-resistant plate will quickly produce a new wear-resistant layer at the worn place even after high wear and tear, and its service life is more than 4 times that of ordinary wear-resistant plates.

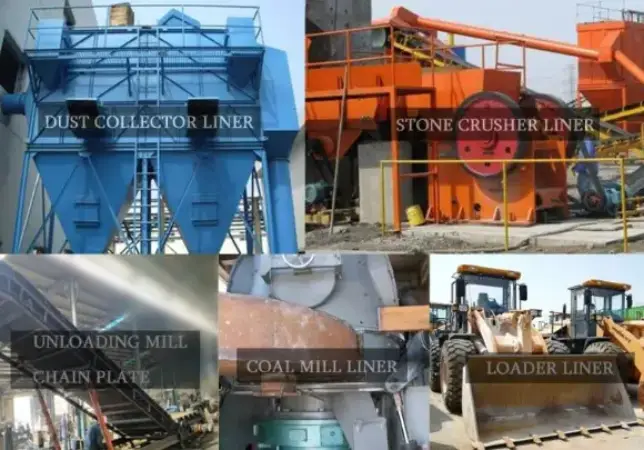

XAR450 Wear-Resistant plate has high wear resistance and good impact performance. It can be cut, bent, welded and more. It can be connected with other structures by welding, plug welding, bolting, etc. XAR450 wear-resistant plates are mainly used for excavators, mining machines and bulldozers, such as protective backing plates, shell walls, cutting plates, side edge plates, bucket bottom plates, unloading mill chain plates, hopper liners, etc. to manufacture the highest quality equipment and equipment. Maximize their service life, minimize the risk of failure, thereby maximizing production capacity.

XAR450 Wear-Resistant Steel Plate is composed of low-carbon steel plate and alloy wear-resistant layer. The wear-resistant steel plate can be rolled into wear-resistant pipes with a small diameter of DN200, and can be processed into wear-resistant elbows, wear-resistant tees, and wear-resistant reducers. Beibang Steel can provide XAR450 wear-resistant plates of various sizes and specifications, and can provide processing services such as cutting, welding, bending, etc. to meet the needs of customers.

XAR450 Abrasion Resistant Plate Datasheet

Thickness:  3mm~130mm,
Width: 1000mm~3200mm,
Length: 2000mm~12000mm or as required
Thickness tolerance: ±0.1mm
Standard: THYSSENKRUPP
Technique:Hot rolled
Surface Treatment: Clean, blasting and painting according to customer requirement

XAR450 Abrasion Resistant Plate Chemical composition

XAR450 Abrasion Resistant Plate Mechanical Properties

Carbon equivalent CET (℅) [CET=C+(Mn+Mo)/10+(Cr+Cu)/20+Ni/40]: 0.32

Carbon equivalent CEV (℅) [CEV=C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15]: 0.48

Equivalent Grade of XAR450 Abrasion Resistant Plate
